Vortex Mixers -E-VM-B Basic Touch Vortex Mixer

The E-VM-B is a basic touch-activated vortex mixer — a compact, cost-effective instrument that’s designed primarily for rapid, strong vortexing with minimal user interface. It’s ideal for labs that require vigorous re-suspension of small tubes (e.g., microcentrifuge tubes) but don’t need variable-speed control.

Request Information

Your credit card is safe with YOCO Payment Gateway , zero risk!

Description

Features

Fixed Speed at 3000rpm
Compact attractive design
Touch operation
Constant speed under varying loads, monitored by electronic circuit
Excellent mixing capabilities
Silicone feet for ultra-stability
Eccentric with ball bearings
CE Marked
2 Year Warranty

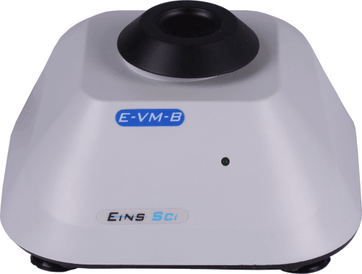

E-VM-B Basic Touch Vortex Mixer

Specifications	E-VM-B	E-VM-A
Type of Movement	Orbital	Orbital
Operation Type	Touch	Continuous / Touch
Orbital Diameter [mm]	4.8	4
Speed Range [rpm]	3000	0 – 2500
Speed Display	No	Analogue
Motor Rating Input [W]	12	58
Motor Rating Output [W]	8	10
Timer	No	No
Protection Class Acc. to DIN EN 60529	IP 21	IP 21
RS232 Computer Interface	No	No
Dimensions (W x H x D) [mm]	134 x 70.5 x 134	127 x 160 x 130
Weight [kg]	0.8	3.5
Housing Material	ABS with Cast Aluminum Base
Permissible Ambient Temperature [°C]	5 – 40	5 – 40
Permissible Relative Humidity [%]	80	80
Input Power [W]	20	60
Voltage [V AC]	100 – 240	110 – 120 / 220 – 230
Frequency [Hz]	50/60	50/60
